Product Name:
DANNOVO Mini Outdoor/Indoor Medium Speed Dome PTZ Camera,Samsung10x10 Zoom,360º Rotation(DN-CPTZ031M)
Main Features
DANNOVO Mini Outdoor/Indoor Medium Speed Dome PTZ Camera,Samsung10x10 Zoom,360º Rotation(DN-CPTZ031M):
Mini Medium Speed Dome PTZ Camera Features:
>Sensor: 1/4", Interline Transfer SONY CCD;
>Samsung SDM-100P:10x Optical X 10x Digital Zoom;
>Horizontal Resolution: Color 500TVL,D/N 570TVL;
>Lens: f=3.8 to 38mm(F 1.8 to 3.2);
>Min. Illumination: 0.6 Lux/color, 0.02Lux/D&N;
>Effective pixels: 752(H)X582(V);
>Medium Speed Dome:Horizontal Rotation Range:360º,Tilt Rotation Range:0°~90° Flip; 180° Auto Flip with 10° Forward Tracing;Pan/Tilt Rotation Speed: 60°/s;
>Function display: OSD;
>Preset speed: 300 Deg/Sec
>Preset point: 128 points.
>Tours: 6 programmable(Dwell time/Speed/Preset point).
>Diameter of Dome: 3.8";
Optional Cameras:

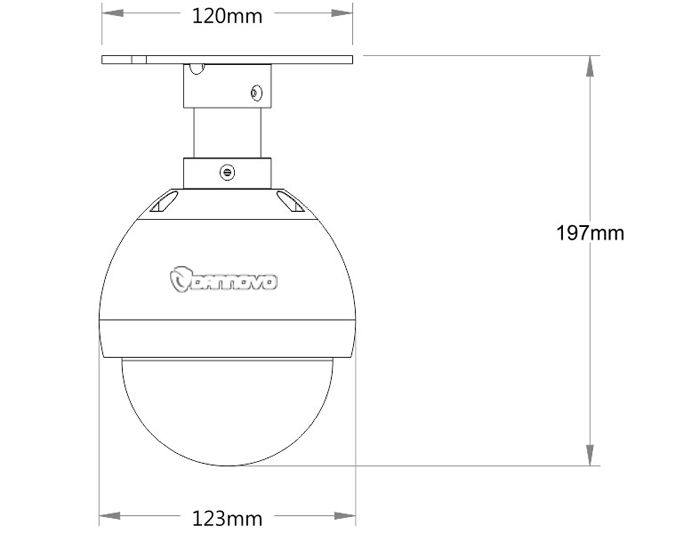

Indoor Dome: DN-CPTZ031Ma;

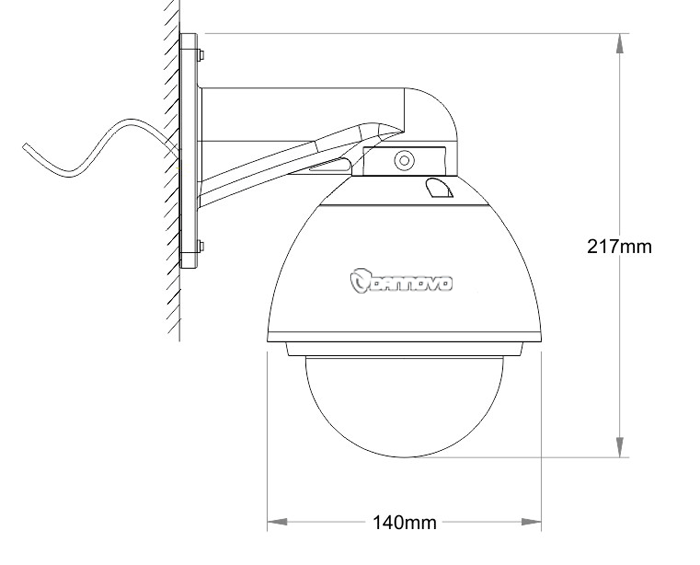

Outdoor Dome: DN-CPTZ031Mb.
 |
 |
 |
|
 |
|||
| Dome Type |
DN-CPTZ031M Series High Speed Dome | ||||
| Model No. | Indoor Dome(DN-CPTZ031Ma) | Outdoor Dome(DN-CPTZ031Mb) | |||
| CCD | Size | 1/4 inch, Interline Transfer CCD | |||
| Total Pixels | 795(H) x 596(V) | ||||
| Effective Pixels | 752(H) x 582(V) | ||||
| Optics | Optical Zoom | 10x, f=3.8 to 38mm(F 1.8 to 3.2) | |||
| Min. Focus Distance | 1000mm | ||||
| Digital. ZOOM | 10x | ||||
| Angle Field of view | H:Appr 51.2°(Wide) to 5.58°(Tele);V:Appr 39.3°(Wide) to 4.27°(Tele) | ||||
| SYNC | Scanning System | 752(H) x 582(V) | |||
| Synchronization | Internal / Line-Lock | ||||
| Frequency | H: 15.625KHz / V : 50.00Hz | ||||
| ELEC. | ID | 255 | |||
| Resolution | 500 TV Lines(Min.) : Color (WIDE) / 570 TV Lines(Min.) : B/W (WIDE) | ||||
| Video Output | CVBS : 1.0Vp-p/75Ω | ||||
| S/N (Y signal) | 50 dB (AGC Off,Weight ON) | ||||
| Min. Illumination | 0.6Lux@F1.8, 0.005Lux@F1.8(Sens-up), Color/0.02Lux@F1.8(B/W) | ||||
| Backlight Compensation | LOW/MIDDLE/HIGH/OFF Selectable | ||||
| Day & Night | Auto1, Auto2, COLOR, B/W(ICR) | ||||
| Gain Control | Normal, High, OFF Selectable | ||||
| White Balance | ATW (INDOOR(3,000K~10,500K), OUTDOOR (1,800K~10,500K))/AWC/MANUAL | ||||
| Electronic shutter speed |
AUTO (X128~1/50sec~ 1/120,000sec ) Sens-up and Sens-up Limit is Selectable, Flickerless | ||||
| Sens | x128 | ||||
| O.S.D | Built-In | ||||
| Motion Detection | ON/OFF(4 Programmable Zone per Screen) | ||||
| Communication | RS-485 or RS-232C CMOS Level (2400, 4800, 9600, 19200, 38400, and 57600bps Selectable) | ||||
| SSNR | Low/Middle/High/OFF Selectable | ||||
| Focus | Auto / Manual / One push 1.67sec : Wide to Tele 1.75sec | ||||
| Zoom Movement Speed | 1.75sec : Wide to Tele | ||||
| Lens Initialize | Built-In | ||||
| Preset | 8 Positions | ||||
| FLIP | Vertical, Horizontal, Vertical-Horizontal, OFF Selectable | ||||
| Freeze | ON/OFF | ||||
| IRIS Control | Auto, Manual | ||||
| Address | 0~255 | ||||
| Pan range | 360°Infinite Continuous Rotation | ||||
| Tilt range | 0°~90° Flip; 180° Auto Flip with 10° Forward Tracing | ||||
| Manual speed Pan | 0.1~60°/Sec | ||||
| Manual speed Tilt | 0.1~60°/Sec | ||||
| Preset speed | 80°/Sec | ||||
| Preset accuracy | ±0.20° | ||||
| Preset points | 64 Points | ||||
| Tours | 6 Programable(Dwell Time Speed Preset Point) | ||||
| Integrate multi-protocol | Pelco_D/P | ||||
| Auto Scan | Yes ( Programable speed ) | ||||
| Intelligent power-off memory current setting and state | Yes | ||||
| Home position | Yes | ||||
| Supporting Camera | 10× Zoom(Sony,Hitachi,Samsung) | ||||
| Zoom | Optical 10x | ||||
| Continue Manual | Endless | ||||
| Ingress Protection IP66 | No | ||||
| Operating Temperature | 0℃~50℃ | –30℃~60℃ | |||
| Humidity | 0%~90% (Non condensing) | ||||
| IP66 for outdoor use | No | Yes | |||
| Power | 24VAC 1500mA | ||||
| Consumption | 6W | 8W | |||
| communication | RS485 (+/-) | ||||
| Connection | BNC | ||||
