DANNOVO MiNi Nice IR PTZ Medium Speed Dome Analog Camera Indoor,China 10x,Samsung 12x Zoom,360º Rotation,OSD Menu(DN-CPTZ060M)
Main Features
DANNOVO MiNi Nice IR PTZ Medium Speed Dome Analog Camera Indoor,China 10x,Samsung 12x Zoom,360º Rotation,OSD Menu(DN-CPTZ060M):
IR PTZ Medium Speed Dome Features:
>MiNi Cute and Special Indoor IR Medium Speed DOme PTZ CCTV Camera ;
>Horizontal Rotation Range:360º,Horizontal Rotation Speed:0.1°-50°/S;Tilt Rotation Range:94ºs;
>Auto Filip:Horizontal 180°, Vertical 90°;
>PWM Function,Intelligent IR Illumination & Power Consumption Is Variable,Dependant Zoom Factor;
>IR Distance:50M; Multiple Languages For OSD Menu, English, Spanish Etc;
>Support Ambient Light Detection, IR Illumination On 1-15 Grades Selectable;
>Park Action Includes Home/360° Scan/A-B Scan/Tour 1-3;
>Dome ID, Baud Rate, Communication Protocol Can Be Set Via The Controller;
>Supported Protocols: Pelco-D/P; Others On Special Request;
>Plastic Housing,Indoor;
>Preset Points:128;Go To Preset Speed:50°/S.

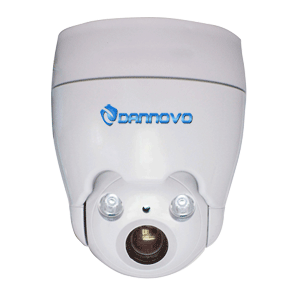

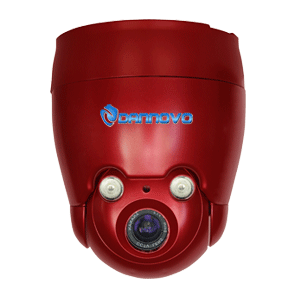

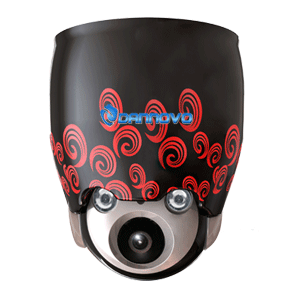

Optional Colors:
Red,White and Lucky Cloudy.
 |
 |
 |
|
 |
|||
| Optional Model NO. | Description | ||
| Dannovo 10x Zoom,480TVL | 1/3" CCD, 480TVLine,10x Optical Zoom | ||
| Dannovo 10x Zoom,650TVL | 1/3" CCD, IR-CUT,EFFIO, 650TVLine,10x Optical Zoom | ||
| Samsung 12x Zoom | Sensor: 1/4" Interline Transfer CCD Camera:Samsung SCM-2121P 12x Optical x 16x Digital Zoom;Horizontal Resolution: Color: 560TVL,B/W:680TVL;Lens:f=3.94 to 46.05mm(F 1.67 to 1.88);Min. Illumination: Color:0.2Lux, B/W:0.04 Lux |
Specifications
| Model No. | DN-CPTZ060M |
| Horizontal Rotation Speed | 0.1°-50°/S |
| Horizontal Rotation Range | 360° |
| Tilt Rotation Range | 94° |
| Auto Flip | Horizontal 180°, Vertical 90° |
| Auto Control IR Led | 50º/S |
| A-B Scan | User Programmable |
| A-B Scan Speed | 01～64 Level |
| Dwell Preset | 05-60s |
| Preset Points | 128 |
| Go To Preset Speed | 50°/S |
| Guard Tours | 3 Groups |
| Guard Points | Max.16 Points, Dwell Time User Selectable 02～60s |
| Park Action | Home/360° Scan/A-B Scan/Tour 1-3 |
| Park Time | 1-60mins Available |
| PWR On Action | Memory/No Action/A-B Scan/360° Scan/Home/Tour 1-3 |
| Ambient Light Detection | Support |
| Communication Protocol | Pelco-D, Pelco-P |
| Communication | RS485 |
| Baud Rate | 1200/2400/4800/9600bps |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
| Operating Humidity | ≤95% Non Condensing |
| Heater & Blower | Auto Temperature Control |
| Power | DC12 ≤3a |
| IR Illumination Distance | Up To 50 Meters |
| Power Consumption | ≤ 20w |
| Lightning Protection | Transient Voltage 3000v |
| Compatible Camera | China Dannovo,Samsung |
| IR Led | Ø16=2 |
