DANNOVO CCD 1.3 MegaPixel 720P HD Wireless Box IP Camera Support SD Card and Audio(DN-H11-MPD-WS)
Main Features
DANNOVO 1.3 Mega Pixel HD 720P Wireless Bullet IP Camera,H.264 Sony CCD Support 32G SD Card Storage and Two-Audio(DN-H11-MPD-WS):
DANNOVO DN-H11-MPD Series 1.3 Megapixel HD Wireless Box IP Camera IP Cameras are designed for high definition network surveillance based on Sony progressive scanning 1.3 Megapixels CCD sensor with high-performance multimedia processor.It adopts the embedded Linux OS.It supports H.264 Main Profile, Baseline Profile, MJPEG, JPEG and so on video encoding standards.It has the advanced Megapixel technology with SD card storage and picture snapshot.It is a set of video capture,image processing,video transmission,video storage,video management functions in one type of high-definition,high-performance network camera.
Optional modules:
Wired Model(DN-H11-MPD);
Built-in 3G Module (CDMA2000/WCDMA)(DN-H11-MPD-3G);
Built-in POE Module(DN-H11-MPD-POE).
CCD 1.3 MegaPixel HD Wireless Box IP Camera Features:
1/3" SONY Progressive Scan CCD;Total pixels:1.3 MegaPixels;Min.Illumination:Color Mode:0.1Lux@F1.2;B/W Mode:0.01Lux@F1.2;Video Compression:H.264 Main Profile,Dual Stream;Maximum Resolution:1280*960(15fps/sec),Other resolution 25fps/sec;Support Two-way Audio,Motion Detection,Alarm,SD Card Storage,Support WiFi 802.11b/g,Power Supply:DC12V/1A.
> Sony progressive scanning 1.3 megapixels CCD sensor;
> H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily;
> High performance SoC ARM9 processor: Hisilicon Hi3512;

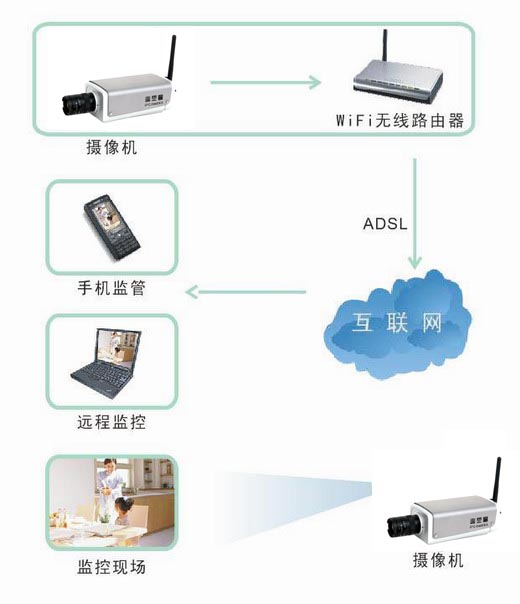

> Support Wireless 802.11b/g;
> Up to 30 frames per second in all resolutions ranging up to 1280x960;
> Up to 10 viewers can directly access the camera simultaneously;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> Support smart mobile phone remote control and view (Windows Mobile 6, Symbian V3 and V5, iPhone);
> Support remote software upgrade;
> Support dynamic IP address , LAN, Internet (ADSL and Cable Modem);
> Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP;
> 1ch Mic input and 1ch linear audio output,Two-way Audio;
> Auto-adjusting frame rate according to realtime network rate;
> Alarm recording: video lost, motion detection and sensor alarm;
> Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols, supports transparent protocols;
> Auto-recovery after exception occurs or the network being reconnect.
 |
 |
 |
|
 |
|||
CCD 1.3 MegaPixel HD Wireless Box IP Camera Model |
DN-H11-MPD-WS/（-3G）/（-POE） | |||||
| Hardware | ||||||
| Network chip | Lan | Realtek 10/100M BASE-TX Self-adapting | ||||
| Sensor | 1/3" SONY Progressive Scan CCD | |||||
| Effective Pixels | 1280(H)×960(V) | |||||
| Total pixels | 1.3M | |||||
| Min.Illumination | Color Mode:0.1Lux@F1.2;B/W Mode:0.01Lux@F1.2 | |||||
| S/N | ≥50db(AGC OFF) | |||||
| Day/night | Auto | |||||
| Auto Electronic Shutter | 1/25-1/100000sec，Slow shutter:1/2,1/4,1/8,1/12sec | |||||
| Interfaces | ||||||
| CVBS video output | 1 channel ,BNC connector | |||||
| Optical lens | Interfaces | CS/C(Mount adapter) | ||||
| Lens | Auto Iris(DC drive) | |||||
| Focal Length | Optional | |||||
| Audio Talkback | 1 channel MIC input, External access, 3.5 mm audio interface | |||||
| Audio Output | 1 channellinear output, 3.5 mm audio interface | |||||
| Storage Interface | SDHC card supports video storage and image snapping; SD2.0 standard,maximum storage 32G(Optional) | |||||
| Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector | ||||
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS485 interface | |||||
| Audio video encoding | ||||||
| Video Compression | H.264 Main Profile； MJPEG/JPEG Baseline | |||||
| Resolution | Master Streaming | 1280*960,1-12.5fps/sec（PAL） 1280*720,1-25fps/sec（PAL） | ||||
| Second Streaming | 640*480，1-25fps/sec 320*240，1-25fps/sec 160*112，1-25fps/sec | |||||
| Video Bitrate | 32Kbps～16Mbps,Supports CBR/VBR | |||||
| Title OSD | Supports channel name, date, and video stream information overlay;OSD location is adjustable | |||||
| Audio Compression | G.711 | |||||
| Data transmission and storage | ||||||
| Data storage | Video and Image | |||||
| Recording | Recording set up to record by motion trigger,alarm trigger, manual, or schedule | |||||
| Alarm Output | FTP、E-mail, Explorer, Software | |||||
| Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |||||
| Wireless protocols（-WS） | 802.11b/g/n、Supports WEP,WPA,WPA2("-ws" model supports) | |||||
| ONVIF protocol | Support | |||||
| Remote View | Computer | IE 6.0 or up, max 10user | ||||
| Mobile Phone | Windows Mobile、Symbian、iPhone | |||||
| General Parameters | ||||||
| Operating Temperature | -10℃ - +55℃ | |||||
| Operating Humidity | 0% - 90% | |||||
| Power | DC12V/POE(IEEE 802.3af)(Optional) | |||||
| Power Consumption | 7W(MAX) | |||||

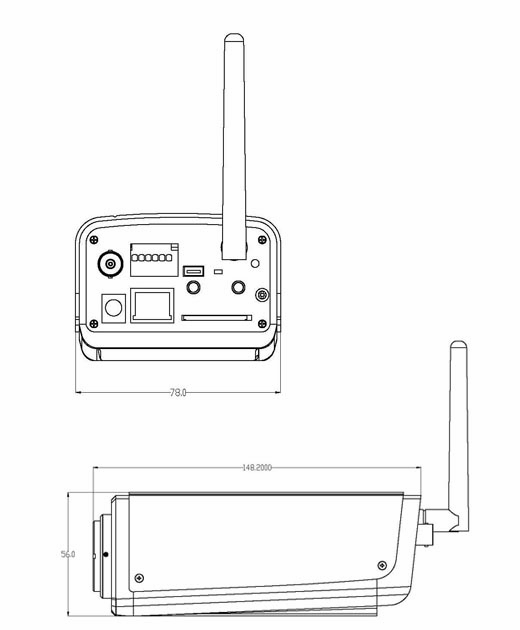

| Dimension | 148(L) * 78(W) *56(H)mm(Lens not included) | |||||
| Weight | 0.56KG | |||||
