DANNOVO Wired CCD Bullet IP Camera,H.264 Video Compression,Support 32G SD Card(DN-H11)
Main Features
DANNOVO Wired CCD Bullet IP Camera,H.264 Video Compression,Support 32G SD Card and Two-way Audio(DN-H11):
DN-H11 Series CCD Bullet IP Cameras is an embedded device designed for network video surveillance application.Advanced H.264 video compression algorithm assures clearer and more fluent image transmission.It uses the newest technics and high integration single chip SOC with powerful linux RTOS (Real-time Operating System) realize high Features and low cost digital mutimedia process. Built-in Web Server allows users to conveniently carry out remote control via Internet Explorer. Furthermore, central management software can be used for integrated surveillance and management of multiple network cameras, so it is very easy to build large video surveillance system.
Optional modules:
Wireless Model(DN-H11-WS);
Wireless 3G module (CDMA2000/WCDMA)(DN-H11-3G);
POE Module(DN-H11-POE);
ZIP Lens(supports Electric lens:Zoom,Aperture,Focusing)(DN-H11-ZIF).
Wired CCD Bullet IP Camera Features:
1/3"SONY CCD,420/520TVL,Min.Illumination:0.1Lux(Color)@F1.2;0.01Lux(B/W)@F1.2,Video Compression:H.264 Main Profile,Dual Stream,Resolution:D1/Half-D1/CIF/QCIF,Supports WIFI,Audio,Alarm,SD Card Storage.
> High performance SoC ARM9 processor: Hisilicon Hi3512;
> Support both high sensitivity SHARP CCD sensor;
> Support 32G SD Card;
> H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily;
> Up to 30 frames per second in all resolutions ranging up to 720x480;
> Up to 10 viewers can directly access the camera simultaneously;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> Support remote software upgrade;
> Support dynamic IP address , LAN, Internet (ADSL and Cable Modem);
> Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP;
> 1ch Mic input and 1ch linear audio output;
> Auto-adjusting frame rate according to realtime network rate;
> Alarm recording: video lost, motion detection and sensor alarm;
> Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols, supports transparent protocols;
> Auto-recovery after exception occurs or the network being reconnect.
 |
 |
 |
|
 |
|||
Wired CCD Bullet IP Camera |
DN-H11/（-WS）/（-3G）/（-POE）/（-ZIF） | |
| Hardware | ||
| Network chip | Lan | Realtek 10/100M BASE-TX Self-adapting |
| Sensor | 1/3"SONY SUPER HAD CCD | |
| Effective Pixels | PAL:752(H)×582(V); N:768(H)×494(V) | |
| Min.Illumination | Color Mode:0.1Lux@F1.2; B/W Mode:0.01Lux@F1.2 | |
| S/N | ≥50db(AGC OFF) | |
| Electronic Shutter | Auto | |

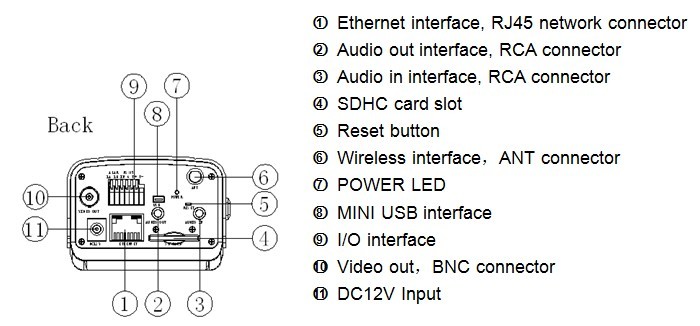

| Interfaces | ||
| CVBS video output | 1 channel,520TVL,BNC connector | |
| Optical lens | Interfaces | CS/C(Mount adapter) |
| Lens | Auto Iris(DC drive) | |
| Focal Length | Optional | |
| Audio Talkback | 1 channel MIC input, External access, 3.5 mm audio interface | |
| Audio Output | 1 channellinear output, 3.5 mm audio interface | |
| Storage Interface | SDHC card supports video storage and image snapping; SD2.0 standard,maximum storage 32G | |
| Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector |
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS485 interface | |
| Audio video encoding | ||
| Video Compression | H.264 Main Profile； MJPEG/JPEG Baseline | |
| Resolution | Master/Second Streaming | D1:704*576(PAL),1-25 fps/sec；704*480(N),1-30 fps/sec Half-D1:704*288(PAL),1-25 fps/sec；704*240(N),1-30 fps/sec CIF:352*288(PAL),1-25 ps/sec；352*240(N),1-30 fps/sec QCIF:176*144(PAL),1-25 fps/sec；176*120(N),1-30 fps/sec |
| Video Bitrate | 32Kbps～16Mbps,Supports CBR/VBR | |
| Title OSD | Supports channel name, date, and video stream information overlay;OSD location is adjustable | |
| Audio Compression | G.711 | |
| Data transmission and storage | ||
| Data storage | video and image | |
| Recording | Recording set up to record by motion trigger,alarm trigger, manual, or schedule | |
| Alarm Output | FTP、E-mail, Explorer, Software | |
| Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |
| Wired | Wired | |
| ONVIF protocol | Support | |
| Remote View | Computer | IE 6.0 or up, max 10user |
| Mobile Phone | Windows Mobile、Symbian、iPhone | |
| General Parameters | ||
| Operating Temperature | -10℃ - +55℃ | |
| Operating Humidity | 0% - 90% | |
| Power | DC12V/POE(IEEE 802.3af)(Optional) | |
| Power Consumption | 5W(MAX) | |
| Dimension | 148(L) * 78(W) *56(H)mm | |
| Weight | 0.56KG | |
