Product Name:

DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom,for Broadcasting,Support Audio Function, SDI, RJ45, HDMI and CVBS port(DN-HDC062)

DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom,for Broadcasting,Support Audio Function, SDI, RJ45, HDMI and CVBS port(DN-HDC062)
Inquire:DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom,for Broadcasting,Support Audio Function, SDI, RJ45, HDMI and CVBS port(DN-HDC062)

Main Features

DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom,for Broadcasting,Support Audio Function, SDI, RJ45, HDMI and CVBS port(DN-HDC062):



DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom Features:

> H.264 & H.265 Encoding Supported IP Network Video Conference camera;
> Support IP RJ45, HD-SDI(3G-SDI), HDMI HD with CVBS SD Output;
> Support Audio Function;
> 20x Optical Zoom X 16x Digital Zoom(Total 320x Zoom);
> Field of View: 60.7° Wide-angle Lens;
> Network Features: Support ONVIF Protocol, Support IP Address Login, VLC Play and URL Play, Support Audio Function;
> Video Format:HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25,
SD: NTSC, PAL;
> Low Lux: High Performance in Low illumination Situations;
> Low Light: High SNR of CMOS Sensor Combined with 2D and 3D Noise Reduction Algorithm, Effectively Reduce the Noise;
> Wide area, quiet, fast Pan/Tilt , shooting;
> New step motor with peace and fast operation,can move to appoint angle quickly and have a wide area shooting;
> Pan/Tilt degree:H:0~340º,V:120º;
> Pan/Tilt Speed:Pan: 1.7° ~ 100°/s, Tilt: 1.7° ~ 69.9°/s;
> PTZ Controlling Protocol: PELCO-P/D, VISCA;
> Camera Control Interface: RS-232C, RS-422/485;
> New wide-angle lens with a wide Angle image capture, the best choice of medium or big meeting room;
> 9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off;
> Enter in and out menu by remote commander directly;
> Multi function Remote control.


Main Application:

Widely used in Broadcasting, Remote-monitoring, Video Conferencing, Distance Learning, House of Worship, Airport, Hotel, Police, School, Museum, Church, Accident, Court, Chain Store, Transportation.

  DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom,for Broadcasting,Support Audio Function, SDI, RJ45, HDMI and CVBS port(DN-HDC062) Specifications DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom,for Broadcasting,Support Audio Function, SDI, RJ45, HDMI and CVBS port(DN-HDC062) Details DANNOVO H.265 Live IP Streaming Video Conference Room Camera 20x Zoom,for Broadcasting,Support Audio Function, SDI, RJ45, HDMI and CVBS port(DN-HDC062) Download
H.265 Live IP Streaming Video Conference Room Camera 20x Zoom Model No.:DN-HDC062
Video SystemHD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
SD: NTSC, PAL
Sensor1/2.7, CMOS, Effective Pixel: 2.36M
Scanning ModeProgressive
Lens20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Digital Zoom16x
Minimal Illumination0.05 Lux @ (F1.8, AGC ON)
Shutter1/25s ~ 1/10000s
White BalanceAuto, Indoor, Outdoor, One Push, Manual
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
Video S/N≥55dB
Horizontal Angle of View 60.7° ~ 3.36°
Vertical Angle of View34.1° ~ 1.89°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +90°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 1.7° ~ 69.9°/s
H & V flipSupport
Number of Preset 255
Preset Accuracy 0.1°
IPC Video Features
Video coding standardH.265/H.264/MJPEG
Video StreamMain stream, Sub stream
Main stream resolution1920x1080, 1280x720
Sub stream resolution720x480, 320x240
Bit Rate128K,256K,384K,512K,768K,1024K,1536K,2048K,3072K,4096K,5120K,6144K,8192K
Bit Rate TypeVariable rate, Fixed rate
Maximum FramePAL: 1-25, NTSC: 1-30.
Audio encode standardAAC
Audio stream rate96K, 128K, 256K
Support protocolsTCP/IP, HTTP, DDNS, RTSP, RTMP, PPPoE, SMTP, UPnP, SNMP, FTP(Optional)

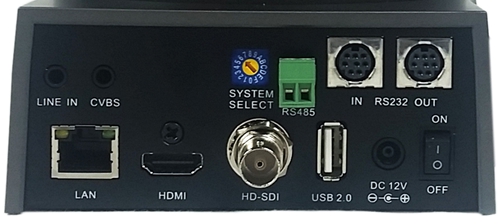

Input/output Interface
HD Output1xHDMI: Version 1.3
1x3D-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output1xCVBS: RCA jack, 1Vp-p, 75Ω
Network interface1xRJ45: 10M/100M Adaptive Ethernet ports
Audio Input1-ch 3.5mm audio interface, Line In
USB 1xUSB2.0: type A jack
Communication interface1xRS-232 IN: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS-485: 2pin pluggable connectors, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power jackJEITA type (DC IN 12V)
Generic Specification
Input VoltageDC 12V
Current Consumption1.0A (Max)
Operating Temperature-5°C ~ 40°C
Storage Temperature-20°C ~ 60°C
Power Consumption12W (Max)
Dimensions169mm x 142mm x 164mm
Weight1.35Kg
