Product Name:

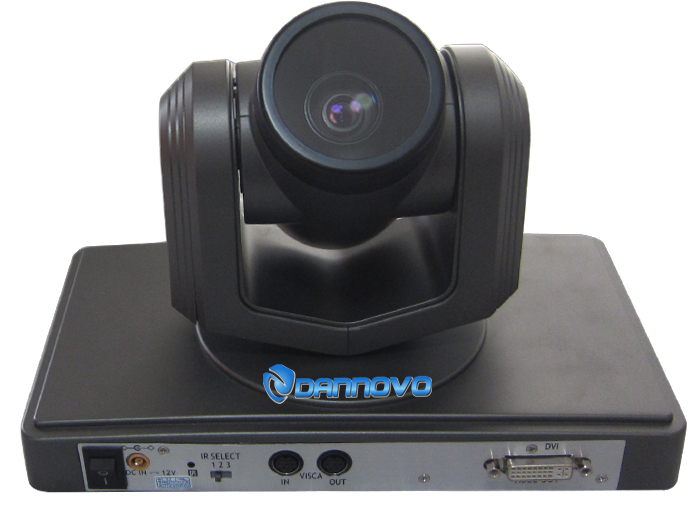

DANNOVO Real Time 1080P/60 Full HD Video Conference Camera DVI,HDMI Output,22x Optical Zoom,with Remote Control(DN-HDC22)
Main Features
DANNOVO Real Time 1080P/60 Full HD Video Conference Camera DVI,HDMI Output,22x Optical Zoom,with Remote Control(DN-HDC22):
Full HD 1080P/60 Real Time Video Conference Camera Features:
>Support 1080p/60 Video Output;
>22x Optical Zoom;
>Adopting 1/2.8 Exmor™ CMOS 2.0 Megapixel Sensor;
>Total Pixel:2.4Megapixels;
>Video Format:1080P/60,1080P/50,1080P/30, 1080P/25, 1080i/60, 1080i/50, 720P/60, 720P/50;
>View Angle:14-57 degree, Focal Length: f=4.7-103MM F1.6-3.5;
>Support Image Auto-Flip Function;
>Pan/Tilt Rotation Angle: Horizontal 355 degree, Vertical 125 degree;
>Pan Speed:1-200 degree/s; Tilt Speed: 1-150degree/s;
>PTZ Controlling Protocol: VISCA,Pelco-D;
>9 Presets by Remote Control;255 Presets by Keyboard Controller;
>Remote Controller for controlling PTZ, Zoom, Preset Position and OSD etc.
 |
 |
 |
|
 |
|||
Full HD 1080P/60 Real Time Video Conference Camera Model No. |
DN-HDC22 | |
| Image Sensor | Sensor | 1/2.8" Type Exmor™ CMOS Sensor |
| Effective Pixels | HD 2.4 Megapixel | |
| Illumination | 0.1 Lux at F1.6 | |
| White Balance | Auto/Manual | |
| Gain Control | Auto | |
| Back-light compensation | On / Off | |
| E-Shutter | 1/2 ~ 1/10,000S | |
| S/N Ratio | > 50db | |
| Lens | Focus | F=4.7-103mm F1.6-3.5 |
| Iris | Auto/Manual | |
| Zoom | 22x Optical Zoom | |
| Video Output | DVI,DVI-HDMI | |
| Video Output Mode | 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50,720p/60, 720p/50 | |
| Communication Interface | EIA/RS232C,RS485 | |
| Communication Control Protocol | PECO-D,VISCA | |
| Baud Rate | 9600/38400bps | |
| Tour | 4 Line | |
| Preset | 9 Presets by Remote Control;255 Presets by Keyboard Controller | |
| Power-off Protection | Saved scanning or patrol line settings Automatically Before power off | |
| Speed Matching | Slow down camera Pan/Tilt movement speed while camera zooming in | |
| OSD Menu | To change parameters of camera or camera module from OSD Menu | |
| Image Auto Flip | When tilt movement over 90 degree(optioin) | |
| Pan Speed | 1-200 degree per second | |
| Tilt Speed | 1-150 degree per second | |
| Pan Rotation Angle | 0~355 degree | |
| Tilt Rotation Angle | 125 degree | |
| Auto Pan Scan | Support auto pan scan | |
| Boundary Scan | 0-359 degree (programmable) | |
| Remote Controller | IR wireless control P/T/Z | |
| Power Supply | DC12V±10%,2A | |
| Working Temperature | 0-50℃ | |
| Environment Humidity | 0-95%RH | |
