Product Name:

DANNOVO 4K 12MegaPixel 35x Zoom IP POE Video Camera for Video Conferencing, Broadcasting and Surveillance,H.265, HDMI, SDI, USB,VISCA over IP(DN-HDC8035-4K)

DANNOVO 4K 12MegaPixel 35x Zoom IP POE Video Camera for Video Conferencing, Broadcasting and Surveillance,H.265, HDMI, SDI, USB,VISCA over IP(DN-HDC8035-4K)
Inquire:DANNOVO 4K 12MegaPixel 35x Zoom IP POE Video Camera for Video Conferencing, Broadcasting and Surveillance,H.265, HDMI, SDI, USB,VISCA over IP(DN-HDC8035-4K)

Main Features

DANNOVO 4K Ultra HD 12.4MegaPixel 35x Zoom IP POE Video Camera for Video Conferencing, Live Broadcasting and Surveillance,H.265 Video Coding, Support HDMI, 3G-SDI, USB, VISCA over IP(DN-HDC8035-4K):



4K Ultra HD 12MegaPixel 35x Zoom IP POE Video Camera Features:

> 1/1.7'' Ultra HD 12 Mega Pixels CMOS Sensor, using the Most Advanced DSP Image Processing;
> Adopting High Level Camera Module(Lens), good for Broadcasting, Video Conferencing, and Surveillance; WDR Supported;
> 4K Ultra HD 3840x2160/30fps over HDMI and IP;

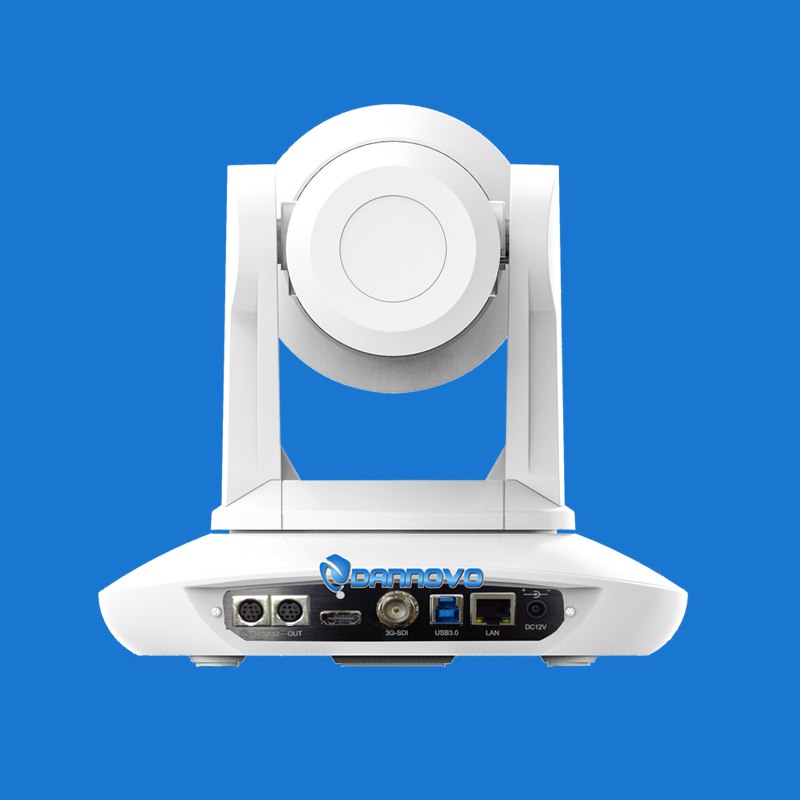

> Support HDMI, 3G-SDI(HD-SDI), USB3.0, IP RJ45 HD Video Outputs;
> Field of View: 62° Wide-angle Lens;
> 35x Optical Zoom X 2x Digital Zoom;
> H.265 & H.264 Encoding Supported Video Conference Camera;
> Pan/Tilt Rotation: H: 340º,V: 120º;
> Pan/Tilt Rotation Speed: 0° ~ 125°/s, Tilt: 0° ~ 100°/s;
>Support PoE Function:Lan Powering is Achieved by Connecting to Network Devices that Support PoE+ Standards(IEEE802.3), Significantly Reduce Installation Costs and Increase Convenience by Eliminating the Need to Use Power or Sockets;
> Network Features: Support ONVIF, RTSP Protocol, Support IP Address Login, VLC Play and URL Play;
> Video Format: 3840x2160p/30,3840x2160p/25,1080p/60, 1080p/50,1080p/30,1080p/25, 1080i/60,1080i/50, 720p/60,720p/50, NTSC/PAL;
> Low Light: High SNR of CMOS Sensor Combined with 2D and 3D Noise Reduction Algorithm, Effectively Reduce the Noise;
> Wide area, quiet, fast Pan/Tilt , shooting;
> New step motor with peace and fast operation,can move to appoint angle quickly and have a wide area shooting;
> Supports Images Flip Function;
> New wide-angle lens with a wide Angle image capture, the best choice of big large room;
>Standard UVC1.5 protocol,seamlessly Compatible with Most Video Conference Software or Applications or Platform, Such as Microsoft Lync, Cisco Jabber, WebEx, Skype for Business, etc.;
> RS-232C/ RS-485 Control with SONY VISCA and PELCO-P/D Protocol, Support IP VISCA Control, IP VISCA Over Both TCP and UDP;
> Support IR wireless remote control P/T/Z;
> Color Optional: Black/White.


Main Application:

Widely used in Live Broadcasting, Education, Video Conferencing, Medical, Distance Learning, House of Worship, Airport, Hotel, Police, School, Museum, Church, Court, Chain Store, Transportation Surveillance.



  DANNOVO 4K 12MegaPixel 35x Zoom IP POE Video Camera for Video Conferencing, Broadcasting and Surveillance,H.265, HDMI, SDI, USB,VISCA over IP(DN-HDC8035-4K) Specifications DANNOVO 4K 12MegaPixel 35x Zoom IP POE Video Camera for Video Conferencing, Broadcasting and Surveillance,H.265, HDMI, SDI, USB,VISCA over IP(DN-HDC8035-4K) Details DANNOVO 4K 12MegaPixel 35x Zoom IP POE Video Camera for Video Conferencing, Broadcasting and Surveillance,H.265, HDMI, SDI, USB,VISCA over IP(DN-HDC8035-4K) Download

4K 12MegaPixel 35x Zoom IP POE Video Camera
Model No.

DN-HDC8035-4K

Image Sensor

1/1.7’’ Ultra HD 12 MegaPixel CMOS Sensor

Effective Pixels

Approximately 12.4 Mega pixels

Video System

HDMI: 3840x2160p/30,3840x2160p/25, 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25.
IP: Main Stream: 3840x2160p/30,1920x1080p/60; Sub Steam: 1280x720p, 704x576, 640x480, 352x288.

SDI: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25.

USB3.0: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 1024x576, 960x540, 640x360, 352x288

Lens

35x Optical x 2x Digital Zoom, f=5.8~203mm, F1.5~4.8

Horizontal Viewing Angle

62°~ 2.0°

Min. Focus Distance

Wide: 0.3m; Tele: 1.5m

Horizontal/Vertical Rotation Range

Pan: 340°;Tilt: 120°

Horizontal/Vertical Rotation Speed

Pan: 0° ~ 125°/s, Tilt: 0° ~ 100°/s

Focus

Auto/Manual

Min. Illumination

0.01Lux

Focus system

Auto/Manual

Noise Reduction

2D&3D

SNR

>50dB

White Balance

Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Support

Gamma

Support

Mirror Function

Support

Horizontal/Vertical Flip

Support

Iris

Auto/Manual

Shutter

Auto/Manual

Backlight Compensation

Auto/Manual

No. of Preset Position

200

Preset Accuracy

0.1°

IPC Video Features

Video coding standard

H.265/H.264

Video Bit Rate Type

Variable rate, Fixed rate

Bit Rate

1024Kbps~40960Kbps

Frames

50HZ:1fps~50fps, 60HZ:1fps~60fps.(3840x2160 max. 30fps)

Support protocols

TCP/IP, HTTP,  RTSP, RTMP, ONVIF, DHCP, etc.

Network interface/Speed

1xRJ45: 1000M

Network Protocol

ONVIF Protocol

Camera Control Interface / Protocol

RS-232, RS-485(optional)(Sony VISCA,PELCO-P/D Protocol),RJ45, USB3.0, USB2.0

PoE

Support

Power

DC 12V / PoE

Color

Black/White

Dimensions

220×190×205.8mm

Weight

1650g

Operating Temperature

-10℃~40

Storage Temperature

-4060
