Product Name:

DANNOVO ONVIF IP Keyboard Controller,3D PTZ Keyboard Controller For Controlling Network IP PTZ Cameras(DN-IPKB012)

DANNOVO ONVIF IP Keyboard Controller,3D PTZ Keyboard Controller For Controlling Network IP PTZ Cameras(DN-IPKB012)
Inquire:DANNOVO ONVIF IP Keyboard Controller,3D PTZ Keyboard Controller For Controlling Network IP PTZ Cameras(DN-IPKB012)

Main Features

DANNOVO ONVIF IP Keyboard Controller,3D PTZ Keyboard Controller For Controlling Network IP PTZ Cameras(DN-IPKB012):



Application:

To Control All IP PTZ High Speed Dome Cameras via ONVIF Protocol


ONVIF IP Keyboard Controller Introduction:

>3D IP Keyboard Controller for IP PTZ Cameras;
>Supports ONVIF2.4 Protocol, can connect to all Brands IP PTZ Cameras, which Supports ONVIF Protocol;
>5.0" LED HD Display;
>Play & Play, Automatically Add and Distribute IP Address of the PTZ Cameras through ONVIF protocol;
>Joystick: 3D (Control: UP, Down, Left, Right, Zoom);
>Can Set and Call Preset Position of PTZ Camera;
>Supports English and Chinese Languages;
>Supports USB and HDMI Outputs: To Achieve the Main Operator Station Screen and Control Equipment Screen Synchronously Switching (Comes with matrix switching function);
>All parameters are set by key-press operation procedure; It is convenient and fast.

  DANNOVO ONVIF IP Keyboard Controller,3D PTZ Keyboard Controller For Controlling Network IP PTZ Cameras(DN-IPKB012) Specifications DANNOVO ONVIF IP Keyboard Controller,3D PTZ Keyboard Controller For Controlling Network IP PTZ Cameras(DN-IPKB012) Details DANNOVO ONVIF IP Keyboard Controller,3D PTZ Keyboard Controller For Controlling Network IP PTZ Cameras(DN-IPKB012) Download

ONVIF IP Keyboard Controller Model No.:DN-IPKB012

Product Network IP Keyboard Controller
Device Controlled IP Speed Dome PTZ Cameras
Protocol ONVIF2.4
Control way Network
Power Supply DC12V/2000MA
Interface 1xRJ45 , 2xRS485 (reserved) , 1xDC12V power , 1xHDMI , 1xUSB
Baud Rate 9600bps
Joystick 3D
Display screen  5 LED
Communication Distance Depend on Network Cable
Control Camera Quantity No Limited (Single Screen Display )
OSD Menu English/Chinese
Operating Humidity ≤90% Non Condensing
Operating Temperature -20℃~+55℃

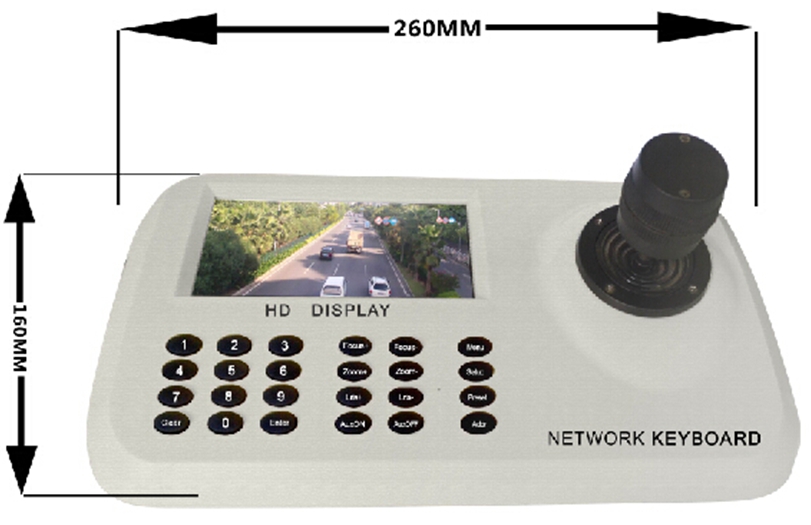

Product size 260mmx160mmx48mm
G.W. 1.52kg
