DANNOVO Outdoor Waterproof PTZ IP Camera LG 28x Optical X 12x Digital Zoom IR Speed Dome Support SD Card Storage,iPhone,Onvif,Two-way Audio(DN-PTZH013-LG28-IR)
Main Features
DANNOVO Outdoor Waterproof PTZ IP Camera LG 28x Optical X 12x Digital Zoom IR Speed Dome Support SD Card Storage,iPhone,Onvif,Two-way Audio(DN-PTZH013-LG28-IR):
Optional Module:
PAL & NTSC SamSung 27x Optical Zoom: DN-PTZH013-A27-IR; PAL & NTSC Sony 18x Optical Zoom: DN-PTZH013-S18-IR; PAL & NTSC Sony 36x Optical Zoom: DN-PTZH013-S36-IR; PAL LG 28x Optical Zoom: DN-PTZH013-L28-IR;
LG 28x Optical Zoom Outdoor Waterproof PTZ IP Camera Features:
1/4 EXview HAD CCD、LG integration camera ,28x optical X 12x digital zoom(336x zoom),Focal Length: f3.25mm(W)~88mm(T),Color ：540TVL/B/W：570TVL，Min.Illumination:0.7Lux(Color )@F1.6;0Lux(B/W)@F1.6(IR ON),Video Compression:H.264MainProfile、Dual Stream、Resolution: D1/Half-D1/CIF/QCIF,Supports Audio, Alarm, 64 Preset positions,rotation range Horizontal:0º-360º/Vertical 0º-90º,Horizontal speed 6º-15º/sec,Vertical:6º-15º/sec,IR Parameters:36 IR LEDs/2 Groups,IR distance 100m,High-strength aluminum shell, integration camera and independent seal IR design,Water and Dust Resistance:IP66.
> 1/4 EXview HAD CCD,LG28x Optical Zoom;
> 36 IR Leds,2 Group;IR Ditance:80-100M;
> Support Micro SD Card Storage,Two-way Audio,Motion detection,Alarm,RTSP;
> Support Onvif Protocol,iPhone,Android etc Mobile Viewing;
> H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily;
> Up to 30 frames per second in all resolutions ranging up to 704x576;
> Upto 10viewers can directly access the camera simultaneously;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> Support remote control and view ip camera;
> Support remote software upgrade;
> Support dynamic IP address , LAN, Internet (ADSL and Cable Modem);
> Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP;
> 1ch Mic input and 1ch linear audio output;
> Auto-adjusting frame rate according to realtime network rate;
> Alarm recording: video lost, motion detection and sensor alarm;
> Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols, supports transparent protocols;
> Auto-recovery after exception occurs or the network being reconnect.
 |
 |
 |
|
 |
|||
LG 28x Optical Zoom Outdoor Waterproof PTZ IP Camera Model |
DN-PTZH013-LG28-IR | |||||
| Integration camera | LG,Sony Module Optional | |||||
| Horizontal rotation range | 360ºUnlimited rotation | |||||
| Horizontal speed | 6º～15º/sec | |||||
| Vertical rotation range | 0º～90º | |||||
| Vertical speed | 6º～15º/sec | |||||
| Preset positions | 128 preset positions | |||||
| Cruise tracks | 4 groups/Each group has 16 presets ,Each preset dwell time can be set | |||||
| Park Action | Support | |||||
| IR Parameters | 36 IR LEDs,IR distance 100m | |||||
| IR LEDS brightness adjust | Manual/Auto | |||||
| IR LEDS ON/OFF | Controlled by the photosensitive resistor (default)/ By the camera | |||||
| S/N | ≥50db(AGC OFF) | |||||
| Day/night | Auto | |||||
| IR distance | 60-100m | |||||
| Interfaces | ||||||
| Audio Talkback | 1 channel MIC input，External access | |||||
| Audio Output | 1 channel linear output | |||||
| Storage Interface | Micro SDHC Car | |||||
| Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector | ||||
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output | |||||
| Audio video encoding | ||||||
| Video Compression | H.264 Main Profile； MJPEG/JPEG Baseline | |||||
| Resolution | Master/Second Streaming | D1:704*576(PAL),1-25fps/sec；704*480(N),1-30fps/sec Half-D1:704*288(PAL),1-25fps/sec；704*240(N),1-30fps/sec CIF:352*288(PAL),1-25fps/sec；352*240(N),1-30fps/sec QCIF:176*144(PAL),1-25fps/sec；176*120(N),1-30fps/sec | ||||
| Video Bitrate | 32Kbps～16Mbps,Supports CBR/VBR | |||||
| Title OSD | Supports channel name, date, and video stream information overlay;OSD location is adjustable | |||||
| Audio Compression | G.726,G.711A,G.711U,AAC,support 32 K stereo | |||||
| Data transmission and storage | ||||||
| Data storage | Video and Image | |||||
| Recording | Recording set up to record by motion trigger,alarm trigger, manual, or schedule | |||||
| Alarm Output | FTP、E-mail, Explorer, Software | |||||
| Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |||||
| Remote View | Computer | IE 6.0 or up, max 10user | ||||
| Mobile Phone | Windows Mobile,Symbian,iPhone,Android | |||||
| General Parameters | ||||||
| Water and Dust Resistance | IP66 | |||||
| Material | Integrated dome,aluminum shell | |||||
| Operating Temperature | -10℃ - +55℃ | |||||
| Operating Humidity | 0% - 90% | |||||
| Power | DC15V 4A | |||||
| Power Consumption | 33W(MAX) | |||||

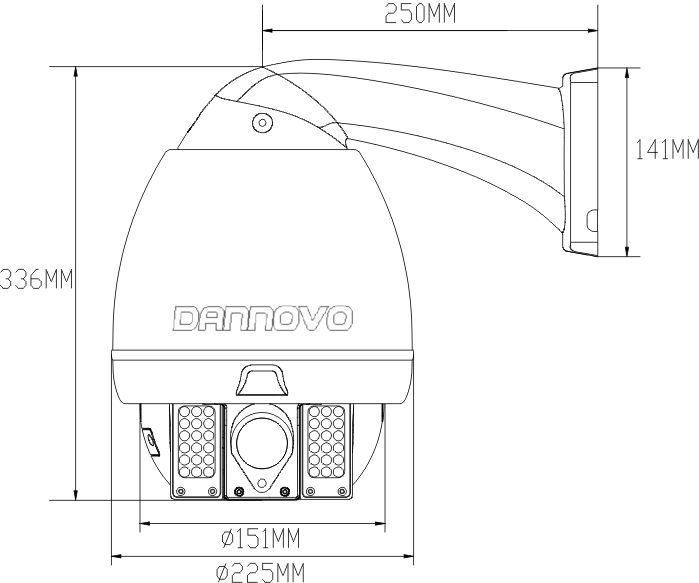

| Dimension | Φ225 *336(H)mm | |||||
| Weight | 5.6KG | |||||
