DANNOVO MiNi Outdoor PTZ IP High Speed Dome Camera Samsung 10x Optical Zoom,Support TF Card Slot,Two-way Audio,iPhone(DN-PTZH05)
Main Features
DANNOVO MiNi Outdoor PTZ IP High Speed Dome Camera Samsung 10x Optical Zoom,Support TF Card Slot,Two-way Audio,iPhone(DN-PTZH05):
DN-PTZH05 Series IP Cameras are designed for network surveillance based on CCD sensor with high-performance multimedia processor. It adopts the embedded Linux OS. It supports H.264 Main Profile, Baseline Profile, MJPEG, JPEG and so on video encoding standards. It is a set of video capture, image processing, video transmission, video storage, video management functions in one type of high-definition, high-performance network camera.
Optional Module:
Samsung(10X Optical Zoom);
Sony Module(10 X Optical,12 X Digital Zoom,Color to black).
Outdoor PTZ IP High Speed Dome Camera Features:
> High performance SoC ARM9 processor;
> Support both high sensitivity SONY CCD;
> Support Mircor SDHC Card,Two-way Audio,Alarm,Motion Detection,RTSP,ONVIF Compliant;
> H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily;
> Up to 30 frames per second in all resolutions ranging up to 720x480;
> Upto 10viewers can directly access the camera simultaneously;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> Support 3G mobile wireless remote control and view ip camera;
> Support remote software upgrade;
> Support dynamic IP address , LAN, Internet (ADSL and Cable Modem);
> Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP;
> 1ch Mic input and 1ch linear audio output;
> Auto-adjusting frame rate according to realtime network rate;
> Alarm recording: video lost, motion detection and sensor alarm;
> Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols, supports transparent protocols;
> Auto-recovery after exception occurs or the network being reconnect.
Outdoor PTZ IP High Speed Dome Camera Model No. |
DN-PTZH05 | |
Block Camera | Samsung, Sony 10X body pickup camera | |
Speed dome camera paramete | PT Speed: level 0.1°-150°/S, vertical 0.1°-100°/S | |
Preset Position: 128,the RMS less than 0.05°,The PST Speed: level 250°/s,vertical 200°/s | ||

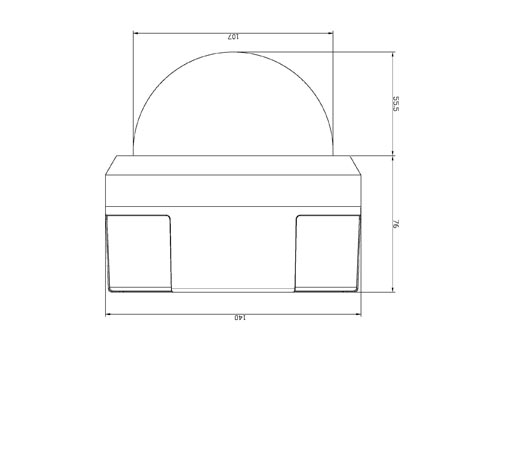

Size:5.0 Inch Alloy Case | ||
Video Standard | PAL/NTSC | |
Scanning systems | Interlaced Scan | |
Processor | Hi3512 | |
Dual Streaming | Support | |
Video Compression | H.264 Main Profile@Level 3.0 / MJPEG, optional | |
Video Resolution | 704*576(PAL), 704*480(N) | |
Video frame rate | PAL:1-25F/s, N:1-30F/s | |
Video Bitrate | 32Kbit/S-16Mbit/S | |
Audio Compression | G.726 | |
Two-way talk output | 1 channel MIC output | |
Audio Output | 1 channel Linear output | |
Title Overlaid | Supports channel name, date, and video stream information overlaid; Adjustable overlaid place | |
Alarm output | 1 channel on/off input ,normal O/C optional | |
Alarm Output | 1 channel on/off output, 120VAC 1A/24VDC 1A | |
Control Interface | 1 RS485 interface | |
E-mail Based Alert | Support | |
RTSP Protocols | Support, you can view live video by VLC player | |
FTP Protocols | Support,auto upload images to a ftp server. | |
Mobile Monitor | Support | |
Waterproof level | Comply with IP66 standard | |
Power Input | DC12V/3.0A | |
Power Consumption | <20W |
