Product Name:

DANNOVO Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera,Support 18x,23x,27x,37x Optical Zoom Options(DN-PTZH066-AT)

DANNOVO Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera,Support 18x,23x,27x,37x Optical Zoom Options(DN-PTZH066-AT)
Inquire:Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera

Main Features

DANNOVO Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera,Support 18x,23x,27x,37x Optical Zoom Options(DN-PTZH066-AT):

Auto Tracking IR PTZ High Speed Dome IP Camera Features:

>Video: H.264 compression standard;
>Resolution:D1(720*576),CIF(352*288),QCIF(176*144);
>Frame Ratio:NTSC 30 F/S, PAL 25 F/S;
>Auto Tracking Function;
>China 23x Optical Zoom,30x and Sony 18x,Samsung 23x,27x Optical Zoom Options;
>PMW Function,IR Distance:100m;
>Roation Degree: 360 degree, Tilt: 93 degree;
>Pan Speed: 0 ~ 200 degrees/s;
>Tilt Speed: 0 ~ 100 degrees/s;
>360 degrees continuously;
>Supports 220 presets;
>Supports Save Status After power Off;
>Supports OSD menu;
>With the ability of control P/T/Z through IP network;
>Built-in 10M/100M auto MDI/MDIX Ethernet interface;
>Frame ratio or Bandwidth can be adjusted;
>Built-in parallel I/O interface, canbe connected to external alarm sensors, supports video recording interaction with alarm message;
>Centralized network monitoring and distributed network monitoring;
>Built-in Web server, supports remotely viewing and/or management the camera from a standard Web browseron any computer, anywhere, and at anytime;
>Each camera can Support 20 users simultaneously connected;
>Supports PPPOE and DDNS;
>Several levels of password protection;


Optional Camera Modules:

Optional Modules Description
Dannovo China Module 23X Optical ZOOM 1/3" CCD, IR-CUT,EFFIO, 650TVLine,23x Optical Zoom
Dannovo China Module 30X Optical ZOOM 1/4" CCD, IR-CUT,EFFIO 4140+649, 650TVLine,30x Optical Zoom
Sony 18x Optical ZOOM Sony FCB Ex-480cp, 18x Optical Zoom, D/N,1/4 type IT EX-VIEW HAD CCD 18X D/N f = 4.1 (WIDE) to 73.8 (TELE) mm, 550TVline
Samsung 27X Optical ZOOM Samsung SCM-2271P,27x Optical Zoom D/N,1/4 inch, Super HAD color CCD 27X, f=3.5 to 94.5mm(F 1.6 to 2.9) ,560 TV Lines(Min.) : Color / 680 TV Lines(Min.) : B/W
Samsung 37X Optical ZOOM Samsung SCM-3371P 37x Optical Zoom D/N/WDR,1/4 inch, Double density interline treneter CCD37X, f=3.5 to 129.5mm(F 1.6 to 3.9) 550 TV Lines(Min.) : Color / 680 TV Lines(Min.) : B/W

  Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera Specifications Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera Details Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera Download
Outdoor Auto Tracking IR PTZ High Speed Dome IP Camera Model:DN-PTZH066-AT
Video Compression H.264 Video Compression
Software Super Client software for recording and management
IR Illumination Distance 100M
Auto Control IR LED PWM
Horizontal Rotation Speed 200°/s
Horizontal Rotation Range 360°
Tilt Rotation Range 93°
Tilt Rotation Speed 180°
Preset Position 220
Auto Tracking Support
Video Resolution D1(720X576) ,CIF(352X288),QCIF(176X144)
Video Frame rate PAL:25frames/second,NTSC:30frames/second
AGC Auto
White Balance Auto
S/N Ratio >48db
Motion detection Support
Alarm Support
Network Protocol PPPOE,TCP/IP,DHCP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,SIP,DDNS,DNS
Power Voltage AC/DC12V ≤3A
Working temperature Tem:-40℃~60℃ HR:10%~90%RHG

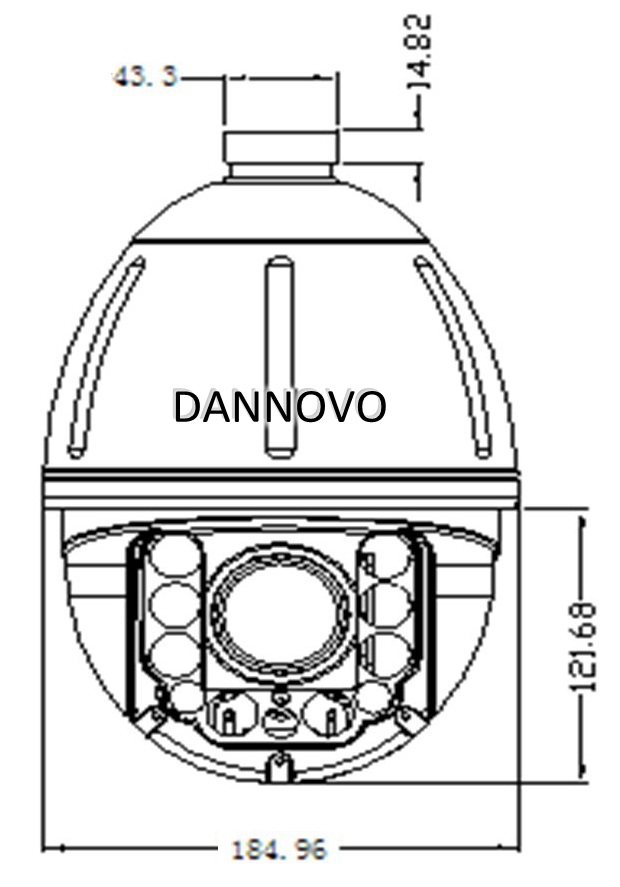

Size 6 inch
Installation Wall/Ceiling
